Locating Up in the Zone – Better for Amateur/Recreational Pitchers

Posted by Kyle Boddy in Articles, Sabermetrics on May 14, 2012

Pitchers at all levels of the game are told to locate their pitches in the bottom half of the zone so they can get hitters to swing over the top of the pitch and produce ground balls. As everyone knows, ground balls are the best way to prevent runs, since you can’t hit ground balls over the fence and it’s tough to hit them into the gaps for extra bases. Apologies to all coaches of youth, high school, and many college pitchers, but: You’re wrong. Pitchers should locate their fastballs and breaking balls in the top half of the zone to get the most success when competing against average youth, high school, and most college hitters.

Ground Balls: Be Careful What You Wish For

It’s happened to everyone – including me - you get a ton of ground balls, your defense boots the ball around, you end up giving up 1 or 2 earned runs but a plethora of unearned runs. When your coach comes and pulls you from the game, he says: “Nothing you could have done, kid. Defense just didn’t play behind you,” pats you on the butt, and tells you to get your running in.

Kyle's May 14th Start

Bad luck. Or was it?

Your teammates apologize for booting that easy ball in the hole, for not picking that ball at first base, and dropping that easy double play opportunity. Being a good teammate, you say “Ah, it happens. Get ‘em next time.” Then while running your poles, you reflect on how particularly unlucky you were that day. If only Bobby hadn’t lost that ball in the sun and Roger didn’t sail that ball from shortstop, you would have gotten out of that long inning. But were you unlucky? Think about it: You did everything you were supposed to – get a few strikeouts, not walk too many, and got a lot of ground balls. And what were you rewarded with? Hasn’t this happened before? What if you got fly balls instead? Don’t hitters swing and miss on your fastballs up in the zone – and when they make contact, don’t they often go for fly ball outs? How many home runs does the entire school have, anyway? Four? But what’s the team batting average – .380? Here are the two major reasons you want to get ground balls at the MLB level:

  1. Sluggers often hit fly balls over the fence.
  2. Defense at the MLB level is insanely elite.

Think about those reasons for a minute. Do either of those reasons apply to your high school league? What do you think the average HR rate on fly balls is in your league? I guarantee it’s not 11%. (MLB Average HR/FB rate.) We’ve already established defenders at the HS/College level are orders of magnitude worse than the Dominican and Venezuelan infielders of MLB (to say nothing of the local product), so why are you applying a heuristic to a completely different game?

Tons of data and a shattered myth after the jump… Read the rest of this entry »

, , , , , , , , , , ,

2 Comments

Reviewing ASMI’s Biomechanical Analysis of Dr. Marshall’s Pitchers (Focus: Performance/Velocity)

Posted by Kyle Boddy in Articles on October 10, 2011

I’ve been meaning to write on this subject for quite some time, and if it’s received well, I’ll write more about ASMI’s report. A fair warning: This post will be very long and will likely contain a lot of scientific jargon that might be tough to understand. Feel free to contact me with questions or comments at any time.

Understanding ASMI’s Biomechanical Analysis

First and foremost, we need to understand what the biomechanical report actually means. The American Sports Medicine Institute (ASMI) offers high-speed video biomechanical analysis of pitchers. (Driveline Baseball offers a comparable product using similar technology.) Using this technology, ASMI analyzed four of Dr. Marshall’s pitchers, settling on three of them for a grouped analysis report (the fourth was not similar enough to the other three and had significantly lower ball velocity). If you are unaware of who Dr. Marshall is and what his theories are, you have a long road of reading ahead – and if you’re really interested in it, I recommend you read all thirty-seven chapters of his freely available book on his theories before continuing with this article. (I realize that means this article will reach an audience of about 7 people, but whatever.)

Here’s a video of Mike Farrenkopf (a pitcher employing Dr. Marshall’s mechanics) throwing at ASMI’s labs in high-speed:

Getting back on track… ASMI ran their analysis on Dr. Marshall’s pitchers and sent it to Dr. Marshall. Dr. Fleisig (who runs ASMI) and he had some disagreements, Dr. Marshall attempted to discredit ASMI’s techniques, and Dr. Flesig responded with a public in-depth look at Dr. Marshall’s pitchers. ASMI’s published report compares Dr. Marshall’s pitchers with both an “elite” group of pitchers and a “mediocre” group of pitchers – the difference being the ball velocity of the groups (the higher the better).

Reading ASMI’s published report isn’t easy, but I’ll try to simplify it. The categories of Maximum Knee Height and Foot Contact can largely be ignored; they’re just discussing static kinematic measurements during phases of throwing a pitch. What we care about starts in the Arm Cocking phase of the delivery, but before we go into that…

A Simplified Understanding of Where Velocity Comes From

Writing where fastball velocity comes from would take me years and it would hardly be a complete dissertation, so we’re going to go with a basic understanding of the mechanism of action while skipping how we get to that mechanism.

Rotational velocities are generated from various segments of the body from proximal to distal, largest to smallest body part – this is known as the kinetic chain. The legs generate force through ground reaction force (GRF), the pelvis rotates around the front leg, the trunk flexes laterally with some velocity, the upper trunk rotates around the spine, and the pitching arm humerus outwardly rotates (externally rotates). How those forces are achieved and passed from segment to segment is a coaching/training concern and not an analysis concern, so we’re skipping it.

Late Cocking Phase

Maximum External Rotation

Now the forearm is laid back in Maximum External Rotation (MER) – which should really be Maximum Forearm Layback, because the forearm in this position is aided not only by humeral external rotation but scapular tilt – and it’s ready to internally rotate to deliver the ball to the target.

As we understand it, velocity comes from just two factors under a very simple physics-based approach, which should be easy to grasp for most readers.

The final velocity of the ball will be directly related to the distance over which the ball is accelerated and how quickly the ball is accelerated. Seems simple enough, right?

Think of it this way: If you can cover 10 meters of ground at 10 meters/sec^2 but want to have a higher end velocity, you could either increase the distance you accelerate or increase the rate at which the object moves.

And so, with this partial lesson out of the way…

Why Don’t Dr. Marshall’s Pitchers Throw 90 MPH?

It’s commonly said that if Dr. Marshall’s pitching motion was so good, it would produce pitchers capable of 90+ mph velocities (the standard for elite baseball pitchers these days). Dr. Marshall rebuts this by saying that his athletes are not genetically gifted like most professional pitchers are. The truth is somewhere in the middle.

Back to looking at ASMI’s report, I want to point out a few factors that are at play:

  • Maximum Throwing Shoulder External Rotation (MER)
  • Maximum Throwing Shoulder Internal Rotation Angular Velocity (IR Velocity)
  • Maximum Throwing Elbow Extension Angular Velocity (Elbow Extension Velocity)
  • The various forces/torques on the shoulder and elbow

The “elite” group (ball velocity 85+ mph in lab testing) had a +/- 1 standard deviation range of 173 to 191 degrees of MER. Dr. Marshall’s pitchers had an average of 162 degrees of MER, which is substantially less than the “elite” group’s. In fact, Dr. Marshall’s pitchers showed more than 2 standard deviations less than the lower bound of the elite group’s MER! This would mean there is significantly less distance for the forearm to travel before the ball must be released.

What’s really interesting is that Dr. Marshall’s pitchers generated an IR Velocity (7899 deg/sec) well within the +/- 1 SD of the “elite” group’s mean IR Velocity, and the same was true for Elbow Extension Velocity. This would seem to indicate that Dr. Marshall’s pitchers had plenty of “fast-twitch” fibers and adequate sequencing of the body (albeit using a vastly different lower body action) to get the job done.

But… something doesn’t make sense: Why are Dr. Marshall’s pitchers’ ball velocities so much lower than the “elite” group’s despite having comparable kinematics of the body parts that matter? The elbow extends and the humerus inwardly rotates as rapidly as the “elite” pitchers in both categories. This is the only thing that should matter, right?

I racked my brain forever after reading this report three years ago and never really grasped the issue above until a few months ago, when I thought it through and talked to numerous kinesiologists and biomechanists. Here’s my theory.

The Broken Kinetic Chain Theory

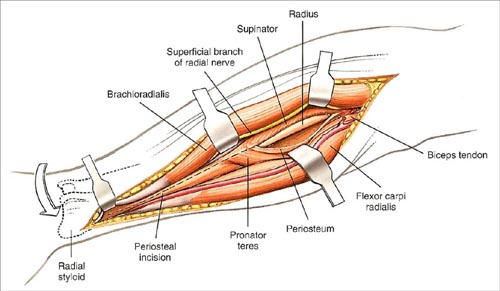

Dr. Marshall’s pitchers are instructed to powerfully pronate their pitching forearm (source: Chapter Sixteen, Dr. Marshall’s Pitching Book) to prevent the ulna from colliding into the olecranon fossa. In doing so, pitchers theoretically avoid bone chips caused by valgus extension overload. However, the mechanism of action in doing so contracts the both the pronator teres and the pronator quadratus.

Anyone familiar with cracking a whip can tell you that the “looseness” of the whip is what creates the miniature sonic boom at the end of the whip. Paul Nyman showed through simulations of a mechanical arm that very small differences in the mechanics of throwing an object can create major differences in the final velocity of the object. (Source: The Hardball Times) If you were to make a segment of the whip stiff, it would break the smoothly flowing energy of the kinetic chain down the whip, causing the final velocity of the tip to be much lower than it normally would.

This is what is happening when you powerfully contract the pronator muscles in the forearm: You are very likely protecting the ligaments in the ulnar collateral ligament (UCL) while simultaneously generating equivalent IR Velocity, Elbow Extension Velocity, and related torques (which are just derivatives of acceleration of body parts; this is typically done using inverse dynamics as outlined by Zatsiorsky) – but you’re getting much lower final velocities of the baseball due to this “stiff” portion violating the kinetic chain. Additionally, due to the rotating forearm as the arm is accelerated forward, the wrist is not laid back for the final acceleration into ball release.

Wagner's Layback

Wagner's Laid Back Wrist

This can be seen by evaluating Mike Farrenkopf’s high-speed video above and comparing it to high-speed video of traditional professional pitchers. These factors can help explain why change-ups are slower than fastballs, as traditional change-ups are thrown with active pronation of the forearm. (It does not explain it all, however – in Kinetic Comparison Among the Fastball, Curveball, Change-up, and Slider in Collegiate Baseball Pitchers by Fleisig et al, you can see that rotational velocities and related torques are slower for the change-up as well; this shows that most change-ups are not thrown with the same “arm speed” as fastballs, despite what you hear from coaches.)

Additional Thoughts

It’s often said that the faster the arm externally rotates (rMER) during Arm Cocking that the stretch-shortening cycle (SSC) will cause humeral IR velocity to increase dramatically as a result, but this theory is not supported by ASMI’s research. Why were Dr. Marshall’s pitchers able to generate such amazing IR Velocities and Elbow Extension Velocities with rMER of just 405 deg/sec when the range of rMER for “elite” pitchers is 1291-1866 deg/sec?

I have more thoughts on this subject for future publication if this article is well-received and there is sufficient interest.

Please feel free to contact me with any questions or comments on this blog post.

, , , , , , , , , , , ,

2 Comments

Why it’s Called the “Inverted W” and Not the “M”

Posted by Kyle Boddy in Articles on September 8, 2011

“Why is it the Inverted W? Isn’t it just an M?”

This is an age-old question that gets asked pretty much every time I see it on a blog or messageboard that’s unfamiliar with the history of the term – “Inverted W.” So let’s get this out of the way – yes, an Inverted W is simply an M. Obviously. But this terminology didn’t come about because someone forgot the fact that M was a letter – the focus is too much on the “W” and not the “Inverted” portion of this term. Like phonetics, the emphasis is on Inverted and not on W when it comes to this term.

Paul Nyman coined this term when he did much of the first amateur video analysis of pitchers available – on a VCR, no less! He counted frames using his VCR and did stop motion work with crude technology long before the proliferation of the Internet. Paul determined that most of the pitchers in MLB could be broken up into three groups:

  • Pitchers who had a mostly long (and straight) arm swing back leading into shoulder horizontal abduction. He called this group slingers.
  • Pitchers who started with their elbow more bent than the slingers, leading to a more horizontally loaded position with the letter W laying on its side.
  • Pitchers who started with their arm hanging down in an inverted position. He said this group displayed an inverted W.

He wasn’t out to name the group the “M group” but was rather specifying the fact that the pitcher’s arm began in an inverted position and formed the “W” above the level of his shoulders rather than behind his back like most others did.

John Smoltz - Inverted W

John Smoltz - Inverted W

You can find all of this information (and more) on the recently opened SETPRO forums. Paul wrote many posts about arm action, and the classifications of the arm actions can be found in Arm Action Chapter 1.

Paul initially believed pitchers with the Inverted W (and to a lesser extent, the Horizontal W) could throw harder than pitchers with the slinging / “going to high cock” motion.  However, after some time, he decided that it was mostly a wash but that “slingers” were more likely to turn into Steve Avery where they’d suddenly lose their ability to throw hard due to immature throwing patterns by getting the arm into the high cock / loaded position too early, leading to “pushing” the ball to the target.

Steve Avery - Slinger

We can debate and discuss whether or not Paul’s findings and/or teachings through SETPRO led to destroyed arms (I used to think that his teachings were harmful; today I believe that pitching mechanics aren’t that simple to understand) but the reality is that there’s really not enough research to even come to a reasonable conclusion. There are research studies showing that a more extended elbow at foot contact leads to lower humeral torques, but mechanical tweaks like this can cause kinks in the sequencing of body parts in an efficient kinetic chain.

I hope this clears up some confusion over what the Inverted W is. Remember, the emphasis is on the inverted positioning of the arm and not the letter made by the elbows, which is why it’s not simply called the “M.”

, , , , ,
